Carbon fiber is revolutionizing industries with its incredible strength and lightness. From aerospace to sports equipment, its applications are vast and essential.In this article, we will dive into the detailed process of manufacturing carbon fiber, highlighting each critical step.You will learn how raw materials are transformed into high-performance fibers and the role of the carbon fiber processing line in this journey.
Carbon fiber is made of thin strands of carbon atoms bonded together to form fibers. These fibers are incredibly strong yet lightweight, making them ideal for applications where performance is paramount. Carbon fiber is known for its high strength-to-weight ratio, chemical resistance, and low thermal expansion, making it an essential material in a variety of industries, including aerospace, automotive, and medical devices.
● Strength-to-weight ratio: Carbon fiber is significantly stronger than steel while being much lighter.
● Chemical resistance: It does not corrode or rust, which is especially useful in harsh environments.
● Low thermal expansion: Carbon fiber’s minimal expansion with temperature changes allows for precise performance in varying conditions.

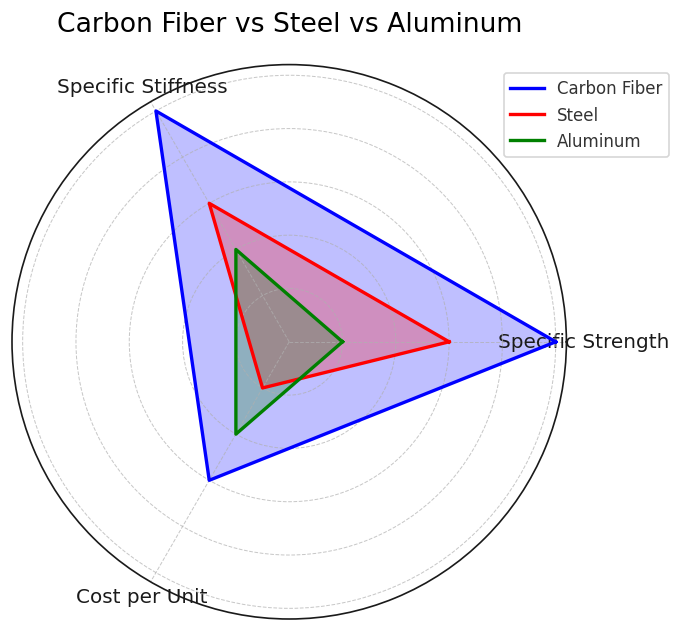

Carbon fiber is chosen for its superior performance in demanding applications. Unlike metals such as steel and aluminum, carbon fiber offers unmatched strength without the bulk, making it the material of choice in industries like aerospace and high-performance automotive manufacturing.
● Comparison with steel: While steel is stronger in compressive forces, carbon fiber’s lightweight nature makes it more suitable for applications where weight reduction is critical, such as in airplanes and high-end vehicles.
● Versatility: Carbon fiber can be molded into complex shapes and combined with resins for even stronger composites.
The journey of carbon fiber begins with precursor materials, primarily polyacrylonitrile (PAN), which constitutes about 90% of carbon fiber production. Other materials such as rayon or petroleum pitch can also be used but are less common.
● PAN is the most commonly used precursor because of its favorable properties, such as higher tensile strength and better chemical structure.
● Preparation: The precursor material is first spun into fibers, which are then chemically altered in various stages to form carbon fiber.
In the first step of manufacturing, the precursor material (typically PAN) is spun into fine fibers using a melt-spinning process. During this process, the PAN is melted and extruded through a spinneret—a metal disc with tiny holes that forms the fibers.
● Fiber size: The fibers must be uniform in diameter for consistent quality.
● Importance of uniformity: Uniform fibers result in a stronger final product and allow for better integration into composites.
Once the fibers are spun, they must be stabilized before carbonization. This involves heating the fibers in air at temperatures between 200-300°C to promote the formation of thermally stable ladder-like bonding structures in the molecules.
● Thermal stability: This stage makes the fibers resistant to further degradation during the subsequent carbonization process.
In this critical step, stabilized fibers are heated to temperatures between 1,000-3,000°C in a furnace. The heat causes the non-carbon atoms to burn off, leaving behind tightly bonded carbon atoms. This process is carried out in an inert atmosphere (typically nitrogen or argon) to prevent oxidation.
● Temperature variation: Higher temperatures lead to stronger carbon bonds, enhancing the final fiber’s properties.
● Carbonization process: This is the step where the fiber transforms into carbon fiber, gaining its unique strength and rigidity.
After carbonization, the fiber’s surface is treated to improve its bonding properties. Without this step, the fibers would be difficult to combine with resins and other materials.
● Oxidation: This step roughens the fiber surface, improving the bonding capabilities and making the fiber ready for composite formation.
The final step in carbon fiber production involves coating the fibers with a protective layer to prevent damage during further handling. The fibers are then wound onto bobbins to create spools of yarn that can be used in various manufacturing processes.
● Protective coatings: These coatings help preserve fiber quality and prevent wear during handling and further processing.
| Step | Description | Key Equipment | Temperature Control |
|---|---|---|---|
| Spinning | Melting and drawing the precursor material into fine fibers. | Spinning machines | High precision required |
| Stabilizing | Heating fibers to convert atomic structure to a thermally stable form. | Stabilization ovens | Controlled environment, 200-300°C |
| Carbonizing | Heating fibers at high temperatures to remove non-carbon atoms and form carbon crystals. | Carbonization furnaces | 1,000-3,000°C in inert atmosphere |
| Surface Treatment | Oxidizing fibers to improve bonding properties. | Oxidation chambers | Controlled for optimal oxidation |
| Sizing & Winding | Coating fibers with protective layers and winding them onto spools. | Winding machines | Proper tension and alignment needed |

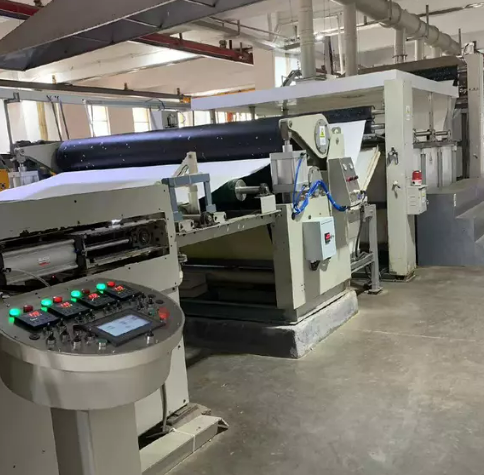

A carbon fiber processing line is a sophisticated production system designed to automate the various steps of carbon fiber manufacturing. The main components include spinning machines, stabilization ovens, carbonization furnaces, oxidation chambers, and winding stations.
● Automation: Automation in carbon fiber production significantly improves efficiency, reduces errors, and ensures consistent quality.
● Machinery: Modern carbon fiber processing lines use highly specialized equipment to manage the precision required in each step, from fiber spinning to surface treatment.
Maintaining precise control over temperature and environmental conditions is essential in carbon fiber manufacturing. Variations in temperature or humidity can impact fiber quality, leading to defects and inconsistencies.
● Temperature control: During stabilization and carbonization, even slight temperature variations can negatively affect the final fiber properties.
● Environmental factors: Humidity and air purity are also critical for maintaining the desired fiber characteristics throughout the production process.
Manufacturing carbon fiber involves significant challenges, such as maintaining consistent fiber quality, controlling the chemical processes, and dealing with potential surface defects.
● Surface defects: Issues like pits or imperfections can weaken the final product, requiring stringent quality control at each stage.
● Equipment maintenance: High-precision machines require regular maintenance to ensure they perform consistently and accurately.
Prepreg is a form of carbon fiber that has been pre-impregnated with a resin, making it easier to handle and integrate into composites. This technology has revolutionized carbon fiber manufacturing, particularly in aerospace and automotive industries.
● Prepreg benefits: It offers more consistent resin distribution and is ideal for automated processes, reducing labor costs and improving efficiency.
AFP is a technique that uses robotics to precisely place carbon fiber layers on a mold. This process enhances manufacturing precision, reduces human error, and speeds up production.
● Applications: AFP is widely used in industries that require complex, lightweight structures, such as aerospace and automotive manufacturing.
VARTM is a molding process where carbon fiber layers are placed in a vacuum bag, and resin is injected into the fibers. This method allows for complex shapes to be created with high strength-to-weight ratios.
● Advantages: VARTM is efficient for producing large components and can create strong, lightweight parts suitable for a variety of industries.
Carbon fiber’s unique properties make it ideal for applications in both the aerospace and automotive industries. Aircraft parts, vehicle chassis, and engine components are often made with carbon fiber to enhance performance and reduce weight.
● Aircraft: Carbon fiber is used in critical parts such as wings and fuselages, contributing to better fuel efficiency and faster speeds.
● Automobiles: High-performance and luxury cars use carbon fiber to reduce weight and improve handling.
Carbon fiber’s versatility extends to sporting goods and consumer products. From bicycles to tennis rackets, the material offers durability and performance.
● Sports equipment: Carbon fiber is used in products where high strength and low weight are critical, like bicycles, golf clubs, and tennis rackets.
In the medical field, carbon fiber is used to create lightweight, strong components for devices like prosthetics and surgical tools. It is also used in military applications for equipment that must withstand extreme conditions.
The growing demand for carbon fiber has led to technological advancements that are driving down production costs. This is helping to expand its use beyond aerospace and automotive industries into new sectors.
● Automation: As automation becomes more advanced, carbon fiber production will become more affordable and accessible.
New innovations in carbon fiber manufacturing, such as the development of 3D printing with carbon fiber composites, are opening up even more opportunities for this material.
● Future uses: We may see carbon fiber playing a major role in renewable energy technologies, like wind turbines and solar panels.
The process of manufacturing carbon fiber involves several detailed steps, transforming raw materials into a high-performance material. As demand for lightweight, strong materials increases, advancements in carbon fiber manufacturing and processing lines will make this material more affordable and accessible across various industries.
For businesses seeking to invest in carbon fiber processing, VIROCK offers advanced solutions. Their carbon fiber manufacturing equipment - VIROCK delivers high efficiency and precision, providing significant value to industries such as aerospace and automotive.
A: The process involves several key steps: spinning the precursor material into fibers, stabilizing them, carbonizing, surface treating, and sizing. The fibers are then wound into yarns for further use in composites.
A: A carbon fiber processing line automates critical stages, such as spinning and stabilization, ensuring high precision and reducing production time. This efficiency boosts both product quality and overall throughput.
A: Carbon fiber is lightweight yet incredibly strong, making it ideal for applications where performance and weight reduction are crucial, like aerospace, automotive, and sporting goods.
A: Carbon fiber offers superior strength-to-weight ratios, chemical resistance, and thermal stability, making it perfect for demanding applications where performance is paramount.
A: Common challenges include maintaining fiber consistency, controlling environmental conditions, and ensuring quality during surface treatments. A well-designed carbon fiber processing line addresses these issues efficiently.
A: By automating and streamlining the production process, a carbon fiber processing line reduces labor costs and improves material yields, helping lower overall production expenses.
A: Carbon fiber is used in lightweight components such as body panels, chassis, and engine parts, improving fuel efficiency and performance in high-end vehicles.
