What Is The Difference between A Dryer And A Stenter?

Have you ever wondered why some fabrics stay smooth while others shrink or wrinkle after washing? The secret lies in how they're dried and finished. In the textile industry, dryers and stenter finishing machines play very different roles—even though they may seem similar.

In this post, you’ll learn how each machine works, why their functions matter, and how choosing the right one impacts fabric quality and performance.

What is a Dryer in Textile Processing?

A dryer in textile processing is a machine made to do one main thing—get rid of moisture. After fabrics go through dyeing, washing, or bleaching, they’re usually soaked. That’s where dryers step in. They remove that moisture using heat and air, getting the fabric ready for whatever comes next, whether it's printing, finishing, or packaging.

These machines work without holding the fabric under tension. That means the fabric stays loose and can move around freely while it dries. It might sound simple, and in many ways it is. But because there’s no stretching or guiding, fabrics can shrink, wrinkle, or lose their shape, especially those made from elastic or knitted materials.

There are a few types of dryers found in textile factories. Tumble dryers use a rotating drum, much like the one at home, but bigger and more powerful. Conveyor or belt dryers move the fabric through a long tunnel on a belt, blowing hot air from above and below. Cylinder dryers press the fabric against heated metal rolls, drying it by contact. Each of these handles drying a little differently, but all focus on fast moisture removal.

Here’s a quick look at how they compare:

A dryer is perfect when speed and simplicity matter more than shape or finish. But it doesn’t do much else beyond drying. No width control. No surface treatment. Just dry fabric—fast and loose.

How Does a Dryer Work?

A dryer works by blowing hot air over wet fabric to make the water evaporate. Some dryers also use heated surfaces that the fabric touches while moving through. The whole idea is to get the fabric dry as fast as possible, without changing its shape. There’s no stretching involved. That means the fabric just sits or tumbles loosely during drying, which can sometimes lead to shrinkage or creases—especially if the fabric is soft or elastic.

The process is simple and quick. Heat goes in, moisture comes out, and the fabric moves on to the next step. That’s why dryers are everywhere in textile plants. But it’s also why they’re not always the best choice for materials that need to keep their exact size or structure.

Types of Industrial Fabric Dryers

Different dryers handle different jobs. Here's how they compare:

Tumble dryers are a lot like home dryers but built for bigger loads. Conveyor dryers keep the fabric flat on a belt, drying it evenly with air from both sides. Cylinder dryers use direct contact with heated rollers for faster results. Infrared and vacuum types are special—they're used when fabrics can’t take high heat or need a gentler touch.

When Should You Use a Dryer?

There are plenty of times when a dryer makes more sense than anything else. It's a great fit when:

• You just need to remove water, nothing more

• You're running a high-volume line and speed matters

• You're working with woven fabrics or garments where size doesn't need to stay exact

• You want a low-cost solution that’s simple to install and easy to run

Dryers are reliable and fast. But they don’t shape the fabric, apply finishes, or control shrinkage. For jobs that demand more than just dryness, you'll need something a little more advanced.

What is a Stenter in the Textile Industry?

A stenter is much more than a machine for drying. In textile finishing, it plays a central role in shaping, setting, and perfecting fabrics before they ever become clothing or home goods. It grabs the fabric by its edges using clips or pins and then stretches it as it moves through heated chambers. This stretching helps the fabric keep its intended size and shape, which is especially important for things like T-shirts, upholstery, or sportswear that need to look the same after every wash.

What really sets the stenter apart is its ability to do several things at once. It doesn't just dry. It also heat-sets synthetic fibers like polyester and nylon, locking in their structure. That way, they don’t shrink or twist later. It also handles chemical treatments. The fabric might get coated with softeners, flame retardants, or water-repellent finishes as it enters the machine. Those chemicals get cured during the heating process so they stay attached and keep working over time.

You’ll also find stenters being used to fix problems in fabric geometry. If the fabric’s edges are uneven or it’s starting to skew sideways, the machine can adjust its tension automatically to correct that. It’s all about producing fabric that’s flat, smooth, and ready for cutting or sewing.

Here’s what a stenter does best:

It’s a key tool for making fabric look and feel finished. Without it, many textiles would be unstable, uneven, or unsuitable for high-end production.

How Does a Stenter Finishing Machine Work?

The stenter might look like a long metal tunnel, but inside, it’s doing precise work. When fabric enters the machine, it’s not just moving through—it’s being guided, stretched, dried, and shaped all at once. Chains or clips grab the fabric edges, usually at the selvedge, and pull them tight. That tension keeps the fabric flat and allows the machine to stretch or hold the width exactly as needed.

The fabric then passes through a series of heated chambers. Inside each one, hot air is blown onto both sides to evaporate moisture and apply heat for setting. For synthetic fabrics like polyester, that heat helps the fibers "remember" their shape. It locks the structure in place so it won’t shrink or twist later. Once it reaches the end of the machine, the fabric is cooled slowly. That cooling step sets the final size and feel.

Core Processes: Drying, Heat Setting, and Width Control

Stenters don’t stop at just drying and heat-setting. They’re also built to improve the look, feel, and performance of the fabric.

Functions Beyond Drying

The stenter is used for adding chemical finishes too. Softeners can be applied to make fabric feel smoother. Water repellents or flame retardants can be added through a liquid bath before the heating chambers. The heat inside cures these chemicals, bonding them to the fibers so they last.

It also takes care of problems like wrinkling or edge distortion. If fabric is bowing or skewing, the machine’s automatic systems can fix it by adjusting chain speeds or tension balance. That’s a big deal in factories where even small misalignments can cause major issues in cutting and sewing.

Here’s what else a stenter helps control:

• Surface wrinkles and texture

• Fabric weight and density (GSM)

• Shrinkage across production batches

• Weft alignment and edge straightness

All of this happens in a single pass, making the stenter one of the most efficient tools in textile finishing. It’s especially valuable when every roll of fabric needs to meet strict quality and size requirements.

Side-by-Side Comparison: Dryer vs Stenter

Dryers and stenters may both use heat, but what they actually do couldn’t be more different. One is all about speed and moisture removal, while the other is focused on control, shape, and finish. If you're choosing between them, it's important to see how they line up across key functions. You’ll notice quickly—they serve different goals and suit different types of fabric work.

Here's a side-by-side view that breaks it down clearly:

Dryers keep the process simple. They don’t guide the fabric tightly, so things like shrinkage or wrinkles are more likely—especially for knitted items. That’s fine if you're drying fleece or towels, where softness matters more than shape.

Stenters, though, are built to stretch fabric on purpose. They clamp the edges, control the width, and fix the shape. That makes them great for anything that needs accuracy, like synthetic blends or export-quality fabrics. While they do cost more, they also do a lot more—all in one pass.

Impact on Fabric Quality and Dimensional Stability

When it comes to how fabric holds its shape and looks after drying, the machine you use makes a big difference. Dryers work fast, but they don’t offer any real control over the fabric’s form. That’s a problem, especially for stretchy or delicate materials like knits. They tend to come out with uneven edges, wrinkles, or a smaller size than before. Since dryers handle fabric in a loose, tension-free state, there’s nothing to stop it from shrinking or curling.

Stenters, on the other hand, are built to keep things stable. The fabric gets clamped tightly and stretched to its target width. As it moves through the heated zones, it not only dries but also sets into that exact shape. That’s key for keeping size consistent across production batches.

Another big factor is density, usually measured in grams per square meter, or GSM. Without control, GSM can vary depending on how much the fabric shrinks during drying. Stenters fix this by holding the fabric flat and evenly tensioned, so the thickness and weight stay uniform. That consistency is what makes stitching easier and improves the feel of the final garment.

Here’s how the two compare in terms of finished fabric results:

If the end product needs to look clean, stay true to size, and feel professional, stenters are clearly the better fit.

Energy Consumption and Operational Efficiency

When comparing a dryer and a stenter, energy use is one of the first things factories think about. On the surface, dryers seem like the cheaper option. They have a simple design and lower power needs per cycle. For short runs or basic drying jobs, they work fine. But when fabric starts coming out with shrinkage or shape issues, those energy savings disappear. Defects often mean you have to reprocess the fabric or waste it entirely, and that adds up quickly.

Stenters, by contrast, pull more energy at the start. They have heating zones, fans, tension systems, and cooling sections all working together. But they’re built for efficiency over the long haul. Many stenters include heat recovery systems that recycle hot air from one chamber to another. That cuts down on fuel or electricity use across shifts. They also offer smart automation. The machine can monitor fabric tension, temperature, and even fabric alignment in real time. Less manual checking means fewer errors and smoother production.

Stenters help reduce waste too. Because they control fabric width and shrinkage from the start, there's less fabric lost to defects or rework. Over time, this saves more energy than it seems at first glance.

Here’s how the two compare in real-world use:

Dryers are easy to run, but they rely heavily on operator attention. Stenters take more to set up but give back in control, repeatability, and fewer mistakes when you're processing large volumes.

Choosing Between a Dryer and a Stenter

Deciding whether to use a dryer or a stenter depends on more than just your budget. It really comes down to the type of fabric, the final product requirements, and the scale of your operation. Both machines can dry, but they handle the job very differently. Let’s take a closer look at where each one fits best.

Best Use Cases for a Dryer

Dryers are a go-to solution when speed and simplicity matter most. They're often found in smaller facilities or places where high-end finishing isn’t a top priority. Since dryers don't hold fabric under tension, they work best on materials that don’t need perfect shape retention.

Here’s when a dryer makes sense:

• Small workshops running low-volume production

• Orders that need fast drying without extra finishing

• Woven fabrics or garments where shrinkage isn’t a big concern

• Jobs where cost savings outweigh appearance or size accuracy

Because they use less power per cycle and are easy to run, dryers are great for basic moisture removal—especially if the fabric will be reshaped or finished later.

Best Use Cases for a Stenter Finishing Machine

Stenters step in when fabric needs to come out looking clean, flat, and stable. If you're working with knits, synthetics, or anything stretchy, it’s almost impossible to skip the stenter. It gives you full control over width, shape, and fabric surface, which helps ensure consistency from batch to batch.

Use a stenter if you need to:

• Handle knitted fabrics or elastic synthetics like polyester or spandex

• Produce export-quality materials where dimensional accuracy is critical

• Apply heat-setting and prevent long-term shrinkage or curling

• Deliver smooth finishes and specific chemical treatments like water resistance

• Run multi-shift or automated production with tight tolerance needs

Stenters may cost more up front, but they pay off by reducing defects, stabilizing product quality, and handling multiple finishing steps in one pass. They’re especially valuable in the textile industry where performance and appearance matter equally.

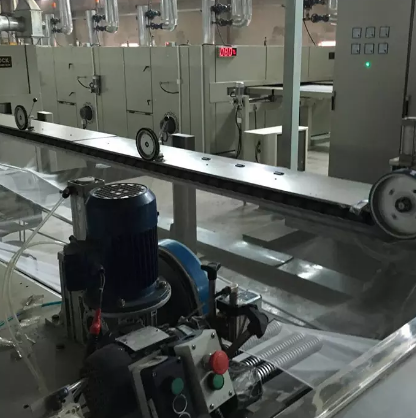

Introducing Our Combined Heating Good Insulation Performance Stenter Finishing Machine

Drawing from years of hands-on experience and deep technical understanding in stenter machine operation, we’ve developed a specialized solution built for performance and precision. The Combined Heating Good Insulation Performance Stenter Finishing Machine is designed to meet the high standards of modern textile finishing, especially where accuracy, consistency, and energy use matter most.

This machine handles more than just drying. It stretches fabric to exact dimensions, heat-sets it for long-term stability, and applies finishing chemicals in one smooth, controlled process. Whether you're working with synthetic blends, knits, or export-grade materials, it gives you consistent output every time.

Let’s take a closer look at what sets it apart:

Key Features

• Performs precision fabric stretching and heat setting in continuous flow

• Maintains consistent length and width based on production specs

• Delivers uniform application of finishing chemicals like softeners or flame retardants

• Corrects shrinkage and edge distortion across production batches

• Built with high-efficiency thermal insulation to conserve energy in long shifts

This machine fits perfectly into textile finishing operations where fabric quality can’t be left to chance. It brings better shrinkage control, tighter tolerances, and smoother results without compromising speed or efficiency.

Conclusion

Understanding what is the difference between a dryer and a stenter is key for anyone working in the textile industry. A dryer is great for quick, low-cost moisture removal, but it offers no control over shape or finish. A stenter finishing machine, however, stretches, heat-sets, and treats fabric all at once. It improves stability, appearance, and performance. For factories focused on quality, precision, and long-term efficiency, the stenter isn't just helpful—it’s essential.

FAQs

What does a dryer do in textile processing?

A dryer removes moisture from fabric after washing or dyeing. It works fast but doesn’t control the fabric’s shape.

How does a stenter improve fabric quality?

It stretches and heat-sets fabric, preventing shrinkage, adding finishes, and keeping width consistent.

Can a dryer replace a stenter?

No. A dryer only dries. A stenter finishes fabric by controlling dimensions and applying treatments.

Why do knitted fabrics need a stenter?

Knitted fabrics are stretchy and prone to distortion. A stenter helps lock in their shape and size.

Is a stenter more energy efficient over time?

Yes. Although it uses more energy at first, heat recovery and reduced waste lower long-term costs.
