Carbon fiber is one of the most advanced materials in modern manufacturing. Known for its remarkable strength-to-weight ratio, it's widely used in aerospace, automotive, and medical fields. But what exactly makes up this extraordinary material?In this article, we’ll explore the core components of carbon fiber, its production process, and the crucial role of the carbon fiber processing line. We’ll also compare it to other materials and discuss its various applications.
Carbon fiber’s strength is attributed to its atomic structure, which plays a crucial role in its exceptional properties.
Carbon fiber is composed of long chains of carbon atoms. These atoms are bonded in a crystalline structure that provides the material with its strength and rigidity. The atoms form a series of covalent bonds, creating a lattice of hexagonal rings. This atomic arrangement gives carbon fiber its high tensile strength and stiffness, making it stronger than many metals on a per-weight basis.
The two-dimensional hexagonal lattice structure of carbon fiber is crucial for its high tensile strength. This lattice is highly ordered, with the carbon atoms arranged in parallel sheets. The alignment of these sheets contributes to low thermal expansion and high stability, making carbon fiber a preferred choice for applications where precision and durability are essential.
The diameter of carbon fibers typically ranges from 5 to 10 micrometers. This small diameter increases the surface area of the fibers, which helps improve their bonding to composite materials. Smaller fibers also allow for better flexibility and weaving, enabling carbon fiber to be formed into various shapes and structures for different applications.
There are several key materials used in the production of carbon fiber. The choice of precursor material significantly influences the final properties of the fiber.
Polyacrylonitrile (PAN) is the most commonly used precursor for carbon fiber production, making up approximately 90% of commercial carbon fibers. PAN is a synthetic polymer that undergoes a complex chemical process to be transformed into carbon fiber. The production of carbon fiber from PAN involves several steps, including polymerization, spinning, stabilization, and carbonization.
While PAN is the industry standard, other materials, such as pitch and cellulose, can also be used to produce carbon fiber. Pitch-based fibers, derived from petroleum or coal tar, have a higher modulus but lower strength than PAN-based fibers. Cellulose fibers, derived from wood or cotton, have the advantage of being renewable but are less common due to their relatively lower mechanical properties.
PAN is favored for carbon fiber production because of its superior mechanical properties and high carbon yield. Compared to pitch and cellulose, PAN-based fibers exhibit better tensile strength and stiffness. The process of transforming PAN into carbon fiber is also more reliable, making it the go-to choice for manufacturers.
The transformation of raw materials into carbon fiber is a multi-step process. Each stage plays a critical role in ensuring the fiber meets specific performance standards.
The carbon fiber processing line involves several key stages, each essential for achieving the desired properties of the final product.
The first step in the carbon fiber production process is spinning. The polymer precursor (like PAN) is spun into long strands of fiber. This process involves wet spinning or dry-jet wet spinning, which are methods that create continuous fibers. During this phase, the polymer chains align, which is crucial for the strength and performance of the fiber. Proper control of spinning conditions is vital to ensure the fibers maintain their integrity during the subsequent steps.
Once the fibers are spun, they are heated to a moderate temperature (200–300 °C) in a process called stabilization. This step is necessary to prevent the fibers from melting during later stages. The stabilization process involves oxidation, which makes the polymer chains more stable and prepares them for the next stage: carbonization.
Carbonization is the most critical stage in carbon fiber production. In this step, the stabilized fibers are heated to extremely high temperatures (around 1500 °C) in an inert atmosphere, typically nitrogen or argon. This intense heat removes non-carbon elements, leaving behind nearly pure carbon. The carbon atoms rearrange themselves into a crystalline structure, enhancing the strength and stiffness of the fiber.
For some applications, carbon fiber undergoes a further high-temperature treatment called graphitization. This process involves heating the carbon fibers to temperatures above 2000 °C, causing the carbon atoms to form a more ordered structure, known as graphite. Graphitization increases the fiber's tensile strength and stiffness, making it suitable for even more demanding applications, such as aerospace.
After carbonization and graphitization, the fibers undergo surface treatment. This process involves applying chemicals to the surface of the fibers to improve their bonding with resins in composite materials. The fibers are then coated with a sizing agent to protect them during handling and to facilitate easier bonding with polymer matrices.
The efficiency and quality of the carbon fiber processing line are crucial to the final product. Even small variations in the production process can significantly affect the fiber's performance.
The precision of the carbon fiber processing line directly influences the mechanical properties of the final product. Factors like temperature control, spinning speed, and stabilization time must be carefully monitored to ensure the fibers have the desired strength and flexibility. Any inconsistencies during the manufacturing process can result in lower-quality fibers that may not meet the required performance standards.
As the demand for carbon fiber continues to grow, manufacturers are turning to automation to improve efficiency and consistency. Automated systems can precisely control the temperature, spinning process, and stabilization conditions, resulting in higher-quality carbon fibers with fewer defects. These innovations are making carbon fiber more accessible and cost-effective for a broader range of industries.
The production of carbon fiber is energy-intensive, with significant emissions produced during the high-temperature carbonization and graphitization stages. Manufacturers are increasingly focusing on sustainable practices to reduce energy consumption and minimize environmental impact. Research into alternative, greener production methods is ongoing, with the aim of making carbon fiber manufacturing more sustainable in the future.

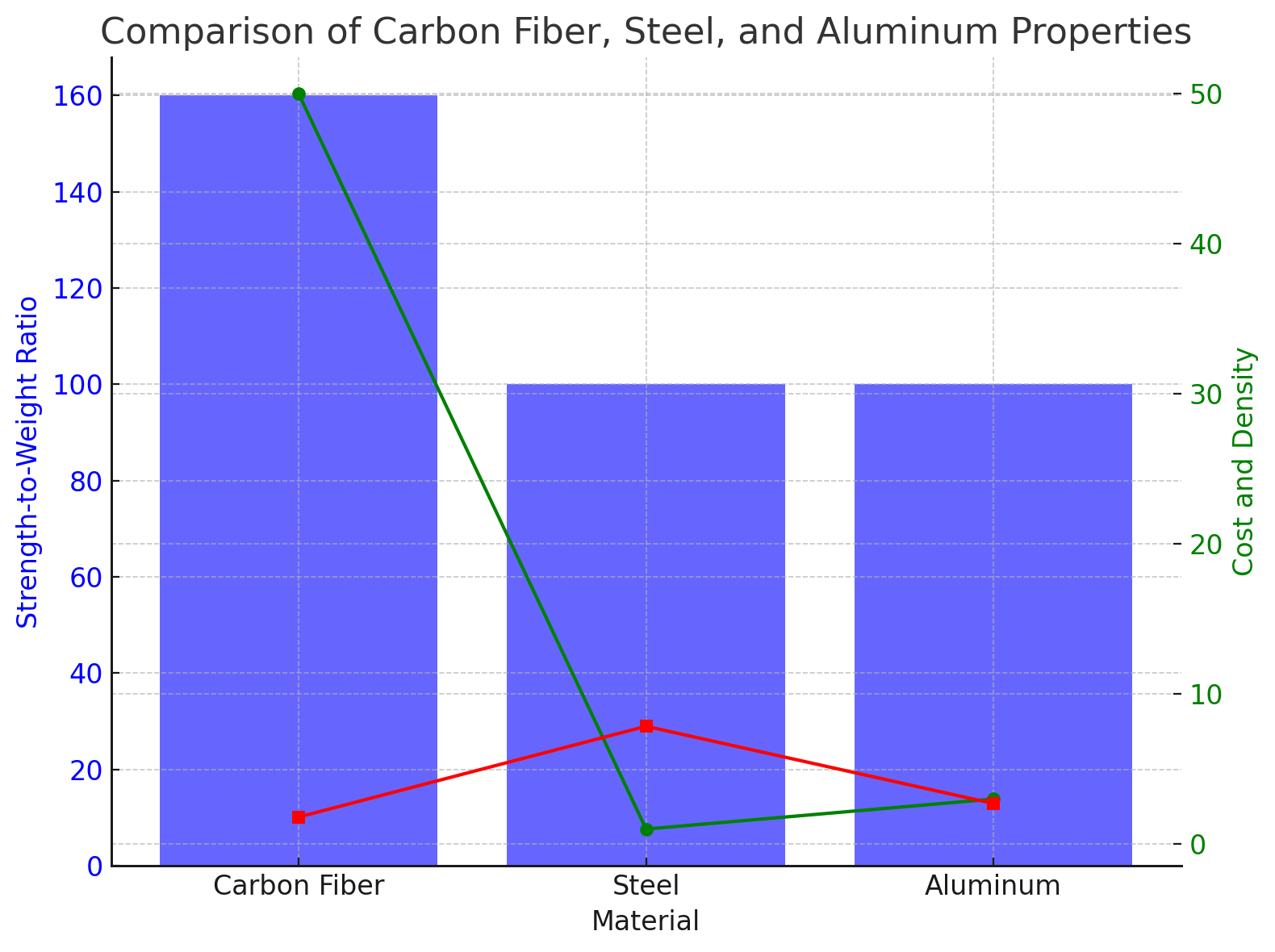

When comparing carbon fiber to traditional materials like steel and aluminum, the most significant advantage is its strength-to-weight ratio. Carbon fiber offers the same or superior strength as steel while being much lighter, making it ideal for weight-sensitive applications.
Carbon fiber is significantly lighter than steel yet offers comparable, if not superior, tensile strength. This makes it an excellent choice for industries where reducing weight without sacrificing strength is critical, such as aerospace and automotive applications. The lower density of carbon fiber also results in improved fuel efficiency and reduced energy consumption.
Despite its superior properties, carbon fiber is more expensive to produce than steel or aluminum. The complex manufacturing process, especially the high temperatures involved in carbonization and graphitization, contributes to its high cost. Additionally, scaling up production to meet the increasing demand for carbon fiber presents challenges for manufacturers.
Carbon fiber's unique properties make it suitable for a wide range of industries, from aerospace to sports equipment.
In aerospace, carbon fiber is used to create lightweight, high-strength components that help reduce aircraft weight and improve fuel efficiency. Similarly, the automotive industry benefits from carbon fiber’s strength-to-weight ratio, allowing manufacturers to produce lighter vehicles that consume less fuel.
Carbon fiber is also widely used in sports equipment, such as bicycles, tennis rackets, and golf clubs, due to its lightweight and durable nature. These products provide enhanced performance while maintaining a high level of strength and flexibility.
In the medical field, carbon fiber’s strength and lightness make it ideal for imaging tables, prosthetics, and surgical instruments. It is also used in industries like construction, military, and robotics, where lightweight yet durable materials are needed.
Understanding what carbon fiber is made of and how it’s produced gives us valuable insights into its remarkable properties and applications. From the chemical structure of the fibers to the intricate processes used in their manufacture, carbon fiber continues to revolutionize industries that demand high strength and low weight. As production methods improve, the material’s potential for new applications grows, making it an exciting prospect for future advancements.

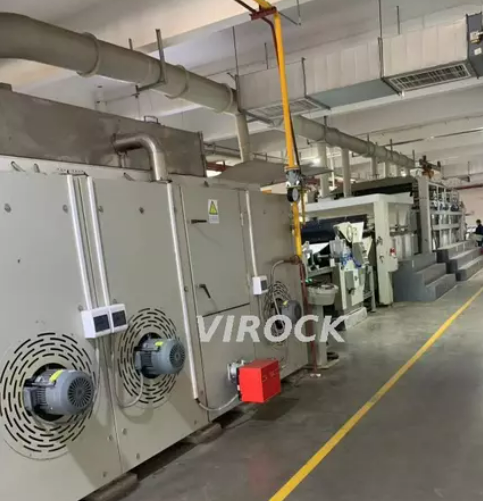

For businesses seeking high-quality carbon fiber solutions, VIROCK offers innovative products designed to enhance production efficiency. Their advanced Carbon fiber processing line provides a reliable and effective approach to manufacturing high-performance carbon fibers, delivering long-term value to a wide range of industries.
A: Carbon fiber is primarily made of carbon atoms bonded together in a crystalline structure. This structure gives it its remarkable strength and light weight, making it ideal for high-performance applications.
A: Carbon fiber is produced through a multi-step process starting with spinning polyacrylonitrile (PAN) into fibers. The fibers are then stabilized, carbonized, and sometimes graphitized to enhance their strength and stiffness.
A: A carbon fiber processing line refers to the equipment and stages involved in manufacturing carbon fiber, including fiber spinning, stabilization, carbonization, and surface treatment.
A: Carbon fiber’s strength comes from its tightly bonded carbon atoms in a crystalline structure, which gives it exceptional tensile strength and stiffness while being lightweight.
A: The efficiency of the carbon fiber processing line directly impacts the quality and consistency of the final product. Precision in each stage ensures strong, durable fibers for various applications.
A: Yes, carbon fiber is generally more expensive than metals like steel due to the complex manufacturing process. However, its strength-to-weight ratio offers significant benefits in industries like aerospace and automotive.
A: Carbon fiber offers high strength, low weight, and resistance to thermal expansion. It’s commonly used in aerospace, automotive, and recreational products to enhance performance while reducing weight.
A: Yes, carbon fiber is used in various industries, including automotive, sports equipment, medical devices, and construction, thanks to its strength, lightweight properties, and versatility.
