Carbon fiber is revolutionizing industries with its strength, lightness, and versatility. But what are the raw materials that make it possible?This article will dive into the key raw materials used in carbon fiber production. You'll learn about the role of these materials, from polyacrylonitrile to petroleum pitch, and how they shape the final product.We’ll also discuss the manufacturing process and the role of carbon fiber washing machines in ensuring high-quality fiber.
Carbon fiber is a lightweight, high-strength material made primarily from carbon atoms. The fibers are typically 5-10 microns in diameter, much smaller than a human hair. Despite their small size, carbon fibers have a remarkably high tensile strength, meaning they can withstand a lot of stress before breaking. This makes them ideal for applications where both strength and lightness are needed, such as in aerospace, automotive parts, and sporting goods.
Another crucial property of carbon fiber is its excellent thermal resistance and low thermal expansion. This means it retains its shape and strength even at high temperatures. Carbon fiber is typically used in composite materials, where it is combined with other materials like epoxy to form lightweight yet strong products.
Carbon atoms are bonded together in microscopic crystals that are aligned parallel to the long axis of the fiber. This alignment is what gives carbon fiber its extraordinary strength for its size. The stronger the bond between carbon atoms, the higher the tensile strength of the resulting fiber. The arrangement of carbon atoms plays a pivotal role in the fiber's properties, making it one of the strongest materials known.

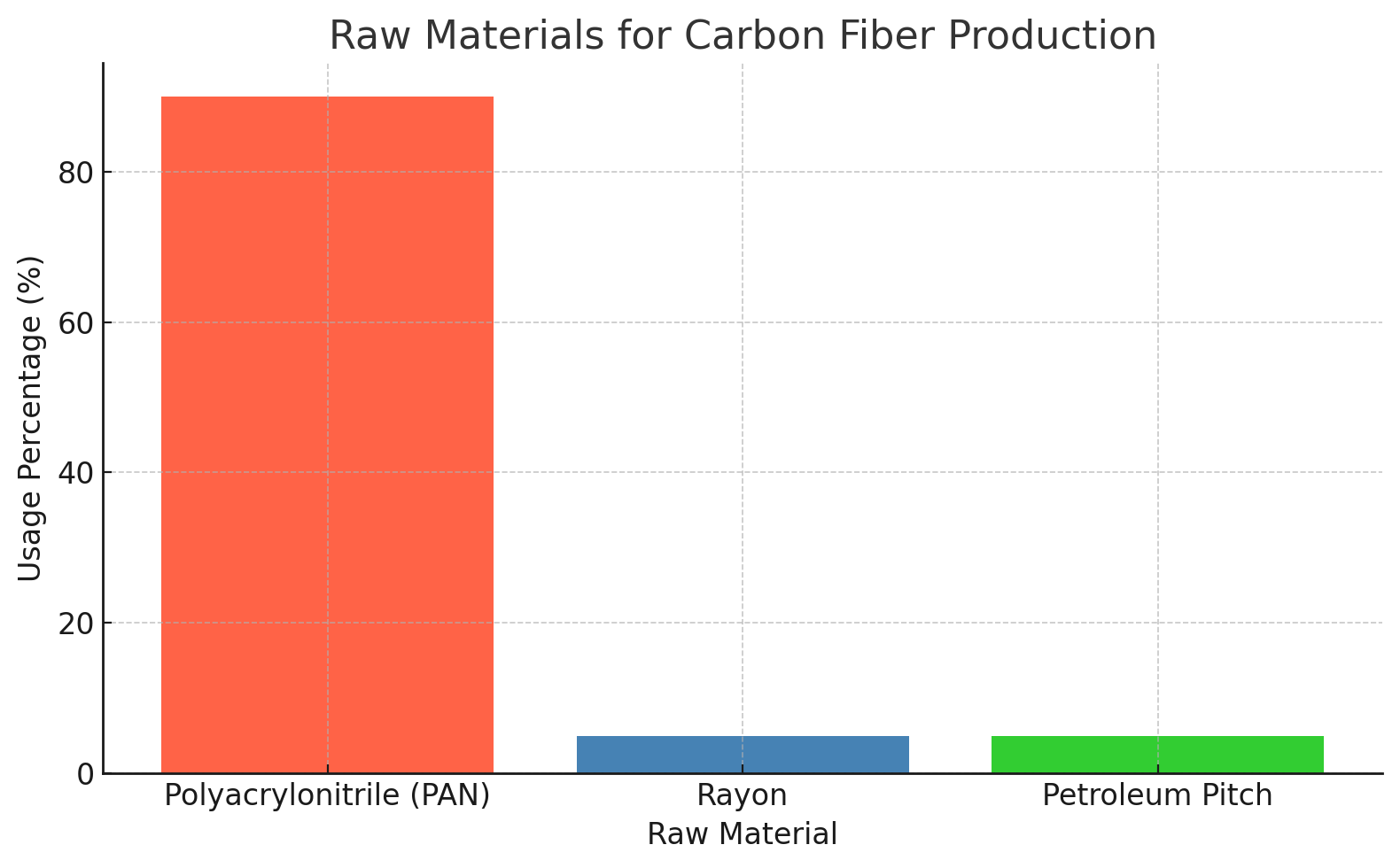

Polyacrylonitrile (PAN) is the most widely used raw material in carbon fiber production, accounting for around 90% of the fibers produced. PAN is a synthetic polymer with a structure that makes it well-suited for carbon fiber production. The polymer chains in PAN are long and aligned, providing the necessary foundation for forming carbon fiber.
The process of converting PAN into carbon fiber involves heating the material to high temperatures in an oxygen-free environment, a process called carbonization. During this process, most of the non-carbon atoms are expelled, leaving behind tightly bonded carbon atoms that form the fibers' strength.
Rayon, another organic polymer, is sometimes used as a precursor for carbon fiber, but it is less common than PAN. Rayon has a different molecular structure, which makes it less efficient in forming strong carbon fibers. While rayon-based carbon fibers are still strong, they typically have lower performance characteristics compared to PAN fibers. However, rayon's lower cost and ease of production make it a viable option in some applications.
Petroleum pitch, derived from oil refining, is another precursor used to make carbon fiber. Pitch-based carbon fibers are highly resistant to high temperatures and are used in specific, high-performance applications such as aerospace and defense. These fibers have excellent flexural strength, meaning they can bend without breaking, but they are less effective in applications where tensile strength is paramount.
The first step in the carbon fiber manufacturing process is spinning, where the raw material, usually PAN, is transformed into fibers. During this stage, the polymer is dissolved and spun into fibers, which are then stretched to align the molecules. This stretching helps the carbon atoms align, setting the stage for the fiber's final strength.
Chemical baths are often used during the spinning process to solidify the fiber, and jet spinning techniques are employed to form the fibers into a continuous strand. Once the fibers are spun, they are washed to remove impurities.
After spinning, the fibers undergo a stabilization process to prepare them for the next step: carbonization. During stabilization, the fibers are heated in the presence of oxygen at relatively low temperatures (around 200-300°C). This process alters the fiber's molecular structure, making it thermally stable and ready for the intense heat needed in the next stage.
Stabilization is critical, as it ensures that the fibers do not degrade or burn when subjected to the extremely high temperatures required in the carbonization process.
The carbonization process is where the real transformation happens. The stabilized fibers are heated to temperatures between 1000°C and 3000°C in an inert atmosphere (such as nitrogen or argon). At these high temperatures, non-carbon atoms like hydrogen, nitrogen, and oxygen are expelled, and the remaining carbon atoms form tightly bonded crystalline structures. This process gives carbon fiber its high strength.
Carbon fiber by itself doesn't bond well with other materials, so surface treatment is necessary to enhance the bonding properties. The surface of the carbon fibers is oxidized, either by exposure to oxygen, carbon dioxide, or ozone. This treatment roughens the fiber surface, allowing it to bond more effectively with resins in composite materials.
Surface treatment improves the performance of carbon fiber composites, making them more reliable and durable in various applications.
The final step in preparing carbon fibers for use in composites is sizing. Sizing involves coating the fibers with a protective material to prevent damage during processing and handling. This coating, typically made from materials like epoxy, ensures that the fibers retain their integrity during weaving or molding.
The raw material chosen for carbon fiber production directly affects the fiber's strength and stiffness. PAN-based fibers are known for their superior tensile strength and stiffness, making them ideal for high-performance applications. Rayon-based fibers, while less strong, are often used in less demanding environments where cost-effectiveness is a priority. Petroleum pitch fibers, on the other hand, excel in high-temperature environments due to their thermal stability but are less suitable for applications requiring high tensile strength.
While carbon fiber has many advantages, its production has significant environmental challenges. The raw materials used in carbon fiber production, especially PAN, are petroleum-based, which raises concerns about sustainability. Researchers are exploring alternative materials, such as bio-based polymers and recyclable precursors, to reduce the environmental impact of carbon fiber production.
As the demand for carbon fiber grows, so does the need for more cost-effective and sustainable raw materials. Research is focused on finding alternative precursor materials, such as plant-based fibers and recycled carbon fibers, to reduce production costs and environmental impact. Bio-based materials show promise in making carbon fiber production more eco-friendly without compromising on performance.

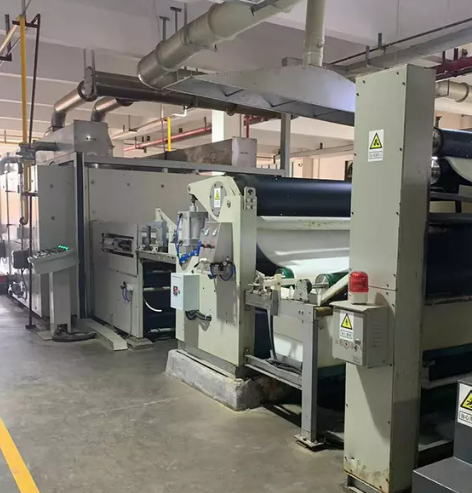

To maintain high standards of quality, the manufacturing process for carbon fiber requires precise cleaning at every stage. Carbon fiber washing machines are crucial in ensuring that fibers are free from impurities that could compromise their performance. These machines are designed to wash and treat carbon fiber surfaces, removing dust, oils, and other contaminants before the fibers are woven or molded into composite materials. The cleaner the fibers, the better the final product will be.
The raw materials used in carbon fiber, such as PAN, rayon, and petroleum pitch, significantly impact its final properties. As demand for high-performance materials grows, innovation in raw materials and production processes will shape the future of carbon fiber. Advanced cleaning technologies like carbon fiber washing machines are crucial in ensuring top-quality production. VIROCK is at the forefront of this innovation, offering specialized solutions to enhance the carbon fiber manufacturing process.
A: The primary raw materials for carbon fiber are polyacrylonitrile (PAN), rayon, and petroleum pitch. These materials undergo a series of processes to create strong, lightweight fibers.
A: A carbon fiber washing machine ensures that fibers are free from impurities during manufacturing, improving the quality and consistency of the final product.
A: PAN is widely used because its molecular structure allows for efficient carbonization, resulting in high-strength carbon fibers that are essential in demanding applications.
A: Surface treatment enhances the bonding properties of carbon fibers, ensuring stronger composites by allowing better adhesion with resins and other materials.
A: The choice of raw material, such as PAN, rayon, or pitch, influences the fiber's strength, flexibility, and heat resistance, making it suitable for various applications.
A: Sizing coats carbon fibers to protect them during handling and processing, ensuring that the fibers maintain their integrity and performance throughout production.
