Carbon fiber is revolutionizing industries with its exceptional strength and lightweight properties. It's the material of choice for everything from aerospace components to high-performance sports equipment.In this article, we will break down the step-by-step process of making carbon fiber, from its raw form to the final product. You’ll discover how carbon fiber processing linesenhance the production process for consistency and efficiency.
Carbon fiber’s strength-to-weight ratio is one of its defining characteristics. It is much stronger than steel but is significantly lighter, making it an essential material in applications where weight reduction is critical. Additionally, carbon fiber offers excellent chemical resistance and low thermal expansion, making it suitable for harsh environments and high-performance products.
● Strength-to-weight ratio: Carbon fiber is about five times stronger than steel, but only one-fourth of its weight.
● Chemical resistance: It resists most chemicals and does not corrode like metals.
● Low thermal expansion: It expands and contracts minimally when exposed to temperature fluctuations.
Due to its unique properties, carbon fiber is widely used in aerospace, automotive, and sporting goods industries. It is commonly found in:
● Aircraft wings, fuselages, and other critical components.
● High-performance vehicles such as race cars, sports cars, and electric cars.
● Sporting equipment like bicycles, golf clubs, and tennis rackets.
When compared to materials like steel and aluminum, carbon fiber stands out for its superior performance. While steel offers strength in compressive forces, carbon fiber excels in applications where high strength-to-weight ratios are crucial. Aluminum, on the other hand, is lightweight but lacks the same strength and rigidity as carbon fiber.
The journey of carbon fiber begins with the precursor material, the raw substance that is transformed into carbon fiber. The most common precursor is Polyacrylonitrile (PAN), a synthetic polymer. Approximately 90% of carbon fiber is made from PAN, while the remaining 10% uses materials like rayon and petroleum pitch.
● PAN: The most widely used precursor because of its superior tensile strength and stability during processing.
● Rayon and petroleum pitch: These alternatives are used less frequently but still serve in specific applications where properties like thermal resistance are needed.
The PAN is then spun into long fibers, a crucial process that defines the quality and uniformity of the final product. The precursor is melted and extruded through tiny holes in a spinneret, forming fine strands. This process is carefully controlled to ensure that each fiber has the correct diameter and consistency.
● Carbon fiber processing lines: These automated machines help ensure precision during the spinning process, producing consistent fibers ready for the next steps.
Once spun, the fibers are stabilized by heating them to temperatures between 200°C and 300°C. This stage, known as stabilization, alters the fiber's chemical structure, allowing it to be prepared for carbonization.
● Stabilization process: Involves heating fibers in the presence of oxygen to change their atomic structure into a more stable form, known as ladder bonding.
Carbonization is a critical step where the stabilized fibers are heated to extremely high temperatures (1,000–3,000°C) in an inert atmosphere, such as nitrogen. This intense heat causes the non-carbon atoms in the fibers to break down and escape, leaving behind carbon atoms arranged in tightly bonded crystalline structures.
● Carbon fiber formation: This process is responsible for the fiber's increased strength and rigidity, as carbon atoms form long, stable chains that reinforce the material.
The carbonization process must be carried out in an oxygen-free environment to prevent the fibers from burning. Specially designed furnaces provide a controlled atmosphere, typically using nitrogen or argon, to ensure that the fibers maintain their structural integrity during this high-temperature phase.
Carbon fiber processing lines are instrumental in maintaining precise control over the temperature and atmospheric conditions during the carbonization stage. Automation ensures that each fiber undergoes the same high-quality carbonization process, yielding consistently high-performance fibers.
After carbonization, the fibers need to be treated to enhance their bonding properties. Surface treatment typically involves oxidation, where the fiber is exposed to oxygen or other chemicals. This roughens the fiber's surface, increasing its ability to bond with resins and other materials in later stages.
● Oxidation methods: Air, carbon dioxide, or nitric acid can be used to oxidize the fiber surface.
Once the fibers are treated, they are coated with a sizing agent such as epoxy or nylon. This coating protects the fibers during handling and ensures that they retain their flexibility, making them easier to weave or wind into composite materials.
● Sizing process: Ensures that the fibers remain intact during the weaving or winding stages and improves their performance when combined with other materials.
Carbon fiber processing lines play a crucial role in automating the surface treatment and sizing processes. They ensure that each fiber is treated uniformly and efficiently, which is vital for the consistency of the final product.
Once sized, carbon fibers are wound into bobbins for storage and easy handling. This process involves careful control of tension and alignment to ensure that the fibers are wound evenly and without damage.
Carbon fiber can then be woven into fabric or mats, depending on the application. The weaving process allows for the creation of various patterns and structures, including unidirectional, bidirectional, or woven fabrics, based on the intended use of the material.
Woven carbon fiber is used in applications requiring high strength and flexibility, such as aerospace and automotive parts. The material is lightweight yet strong, making it perfect for structural components like wings, chassis, and other critical parts.
The curing process involves applying resin to the carbon fiber fabric and then heating it to solidify the structure. This stage helps bond the individual fibers together, creating a final product with the desired mechanical properties.
There are several methods for curing carbon fiber, including autoclave curing, oven curing, and vacuum bagging. Each method affects the final product’s strength, weight, and durability. The choice of method depends on the specific requirements of the application.
Before the carbon fiber is used in manufacturing, it undergoes a final inspection to ensure that there are no defects. Carbon fiber processing lines help automate this inspection process, ensuring consistency and quality at every step.
Prepreg carbon fiber is pre-impregnated with resin and partially cured. It offers improved control over the resin content and allows for quicker processing times in manufacturing high-performance components.
AFP is a process that automates the precise placement of carbon fiber onto molds. It is widely used in aerospace and automotive industries for complex parts that require high precision.
RTM is a molding process where resin is injected into a mold containing carbon fiber, creating a lightweight and durable part. This method is ideal for high-volume manufacturing.
Carbon fiber is used in critical parts such as aircraft wings, fuselages, car body panels, and chassis. It provides strength and rigidity while keeping weight to a minimum.
Carbon fiber enhances performance in equipment like bicycles, golf clubs, and tennis rackets, offering strength and flexibility without compromising on weight.
The future of carbon fiber includes its use in renewable energy sectors, medical devices, and construction materials, expanding its utility across industries.

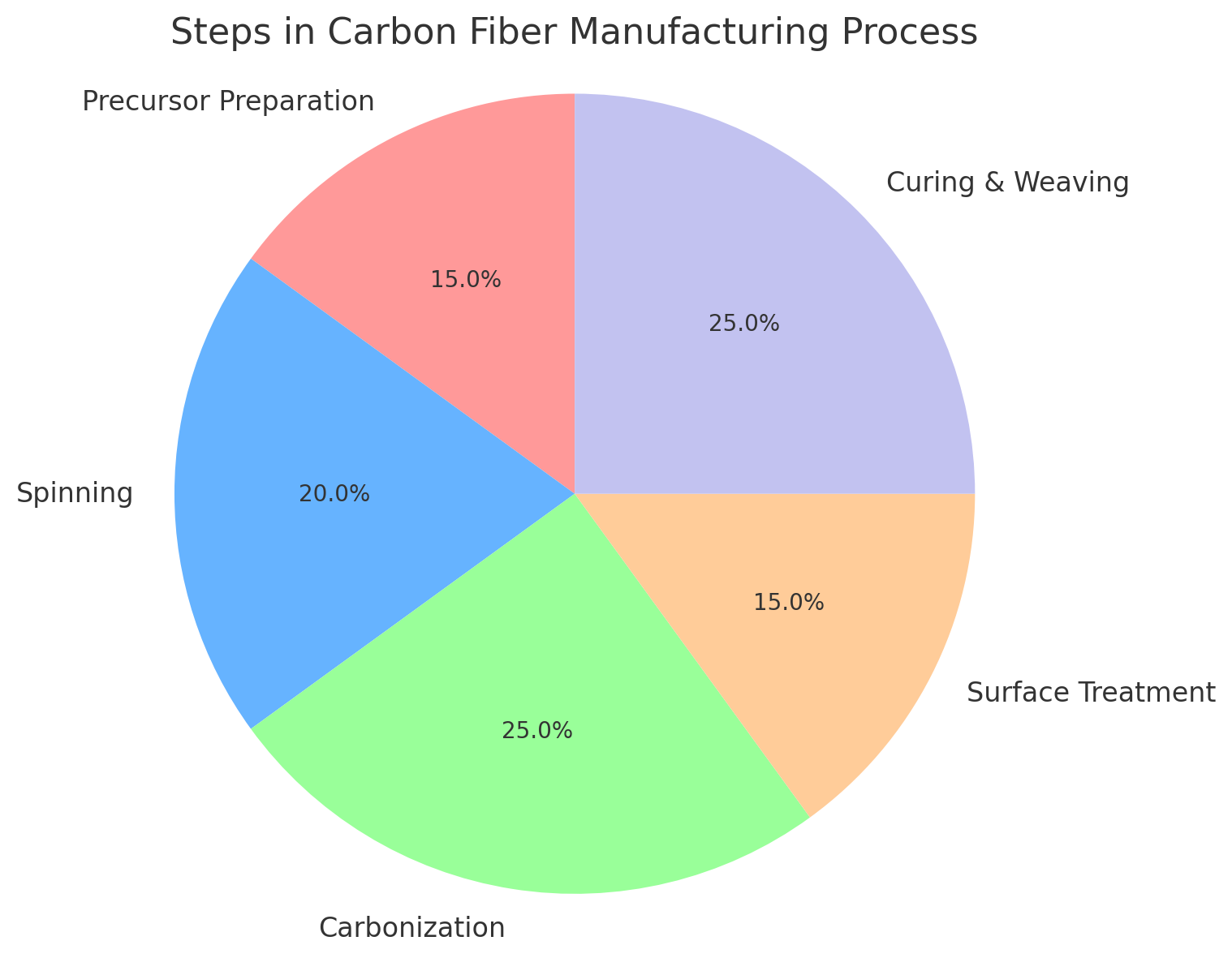

The process of making carbon fiber involves several crucial steps, including preparing precursor materials, spinning fibers, carbonizing, surface treatment, curing, and weaving. Each step ensures the production of high-quality carbon fiber. Carbon fiber processing lines streamline this entire process, enhancing precision, efficiency, and consistency. Technological advancements in carbon fiber manufacturing are reducing costs and making this high-performance material more accessible to various industries.
For businesses looking to optimize their carbon fiber production, VIROCK offers advanced solutions. Their carbon fiber manufacturing equipment - VIROCK enhances efficiency and precision, making the production process smoother and more cost-effective.
A: Carbon fiber is primarily made from polyacrylonitrile (PAN), along with other precursors like rayon and petroleum pitch. These fibers undergo high-temperature carbonization to form carbon fibers.
A: A carbon fiber processing line automates key stages such as spinning, stabilization, and carbonization, improving production speed, consistency, and reducing material wastage.
A: Carbon fiber is lightweight yet strong, making it perfect for aerospace applications where reducing weight without sacrificing strength is essential, such as aircraft wings and fuselages.
A: Surface treatment, such as oxidation, improves the bonding properties of carbon fibers, making them more effective in composite materials used for structural applications.
A: Carbon fiber is much lighter than both steel and aluminum, offering superior strength-to-weight ratios, which makes it ideal for industries where weight reduction is crucial, like automotive and aerospace.
